manufacturing customized tungsten carbide thread nozzle high pressure and wear-resistant
Oil and gas down-hole drilling is an abrasive, punishing environment for tools. The hole can quickly devour tooling that slowly eats its way through the layers.
If you’re down-hole drilling, you know drill bits break, motors seize, and critical wear components give out at the most critical time. Wear is a primary cause of tool failure.
Tungsten carbide nozzle, made of high grade tungsten carbide, is one of the spray nozzles. In another way saying, tungsten carbide nozzles are usually used to sandblasting, therefore, users also call them tungsten carbide sandblasting nozzles. The hardness reached over HRA90 degree while the anti-bending degree reached over 2300N/mm. On machining tungsten carbide spray nozzle, we do the precision grinding and surface treatment to achieve Ra0.1 of the bore roughness and the Ra0.025 of the R place of both ends. There is a scientific curvature radius design in the both entrance. This design can ensure a smooth transit of the thread. Due to the overall materials processing, and no elevation in the bore, the phenomenon of easy-bending and plugging has been improved comparing with the ruby nozzle. tungsten carbide nozzle
We hold immense expertise in offering a precision-engineered array of Tungsten Carbide Nozzles in different sizes, grades and specifications. Our patrons widely appreciate our offered tungsten nozzles as these are resistance against corrosion, have sturdy construction and need less maintenance. Moreover, we provide these tungsten nozzles as per the specifications detailed by patrons. To ensure the presence of above named features in our offered a tungsten nozzles, we make use of good quality raw material in the manufacturing process.
For the varied requirements of our clients, we are engaged in manufacturing, supplying, exporting and trading a wide range of Tungsten Carbide Nozzles. These products are extremely rugged in state and ensure longer functional life. All these products are easy to install and needs low maintenance. These products are available in different sizes and specifications.
Grades recommended
| Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application |
| Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application |
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) |
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure. |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance. |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds, general tools, etc. |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle products |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 |
| ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 |
Products show
Product Tags:
|
|

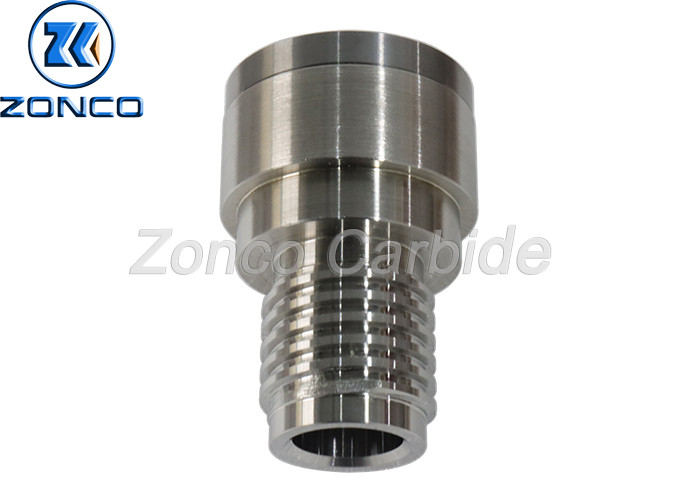

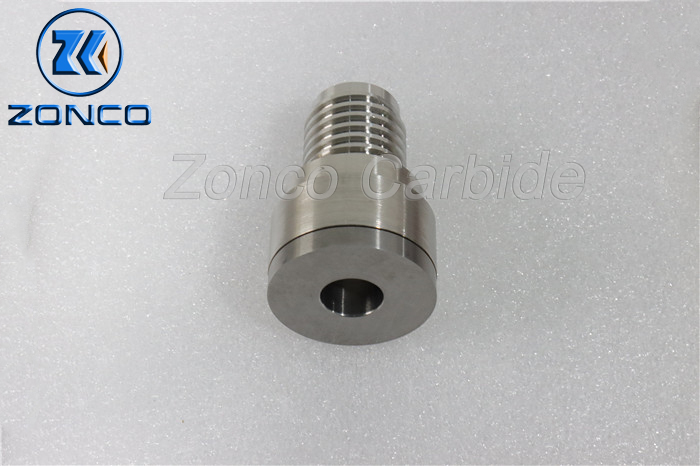

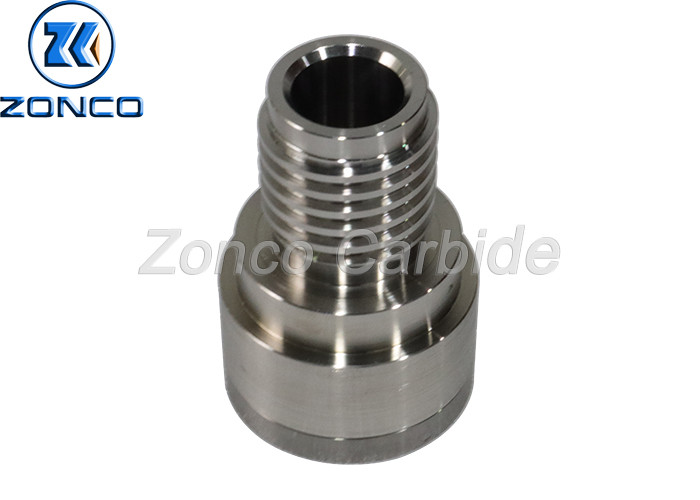

High Pressure HRA95.5 ZG01 Tungsten Carbide Threaded Nozzle Images
|
