Wear Resistance Tungsten Carbide ZK15 Valve Seat Corrosion Resistance

Name: Wear Resistance Tungsten Carbide ZK15 Valve Seat Corrosion Resistance
Brand: ZONCO
Price: 1 USD

China Wear Resistance Tungsten Carbide ZK15 Valve Seat Corrosion Resistance wholesale

Brand Name : ZONCO

Model Number : Customized

Certification : ISO9001:2015

Place of Origin : Zhuzhou

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T,

Supply Ability : 10000 piece/pieces per month

Delivery Time : 30-35 working days

Packaging Details : carton or wooden case. Also can be customized as per your requirement.

Application : Industry valve or petroleum industry

Surface : Mirror Finish

Product name : Tungsten carbide valve core

Feature : High hardness, corrosion and wear resistance etc

Grade : ZK06/ZK08/ZK11/ZK15

Packing : Standard export package

Contact Now

OEM&ODM wear-resistance corrosion resistance tungsten carbide valve core valve seat

Direction for use

These valve components have high temperature resistance,wear resistance and corrosion resistance It is mainly used for the sealing of oil pump valves such as sand wells,heavy oil wells,offshore oil wells and high-pressure sulfur-resistant oil wells in the petroleum industry.

Tungsten Carbide Materials Grade As Below:

Zonco Grade	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
ZK11	14.2-14.4	87.1	2600
ZK15	13.95-14.15	87	2600
ZK20	13.45-13.65	83.5	2600
ZK06	14.8-15	90	2100
ZK06A	14.85-15	91	2000
ZK08	14.65-14.85	89.5	2000
ZY20C	13.4-14.6	82.5	2700

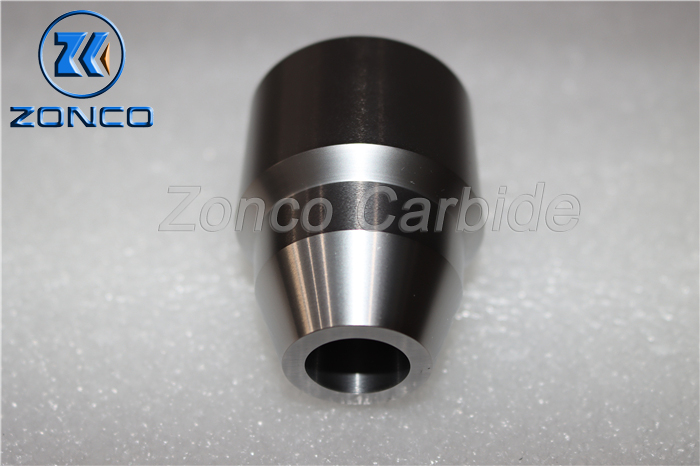

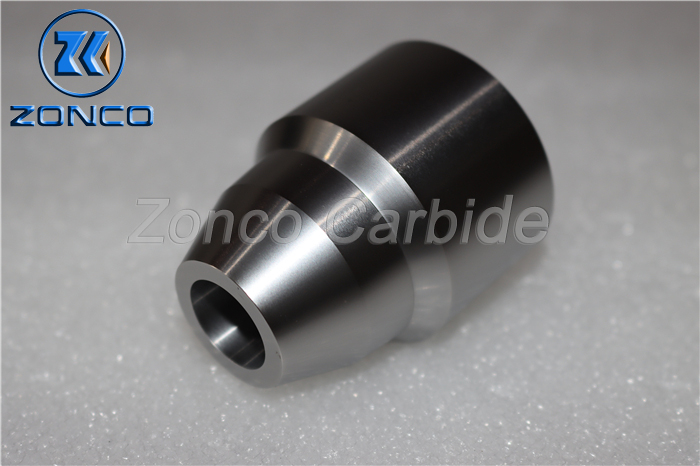

Products show

Wear Resistance Tungsten Carbide ZK15 Valve Seat Corrosion Resistance

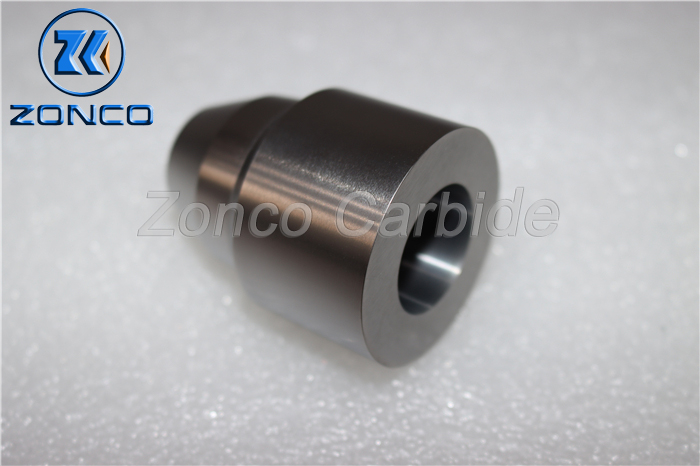

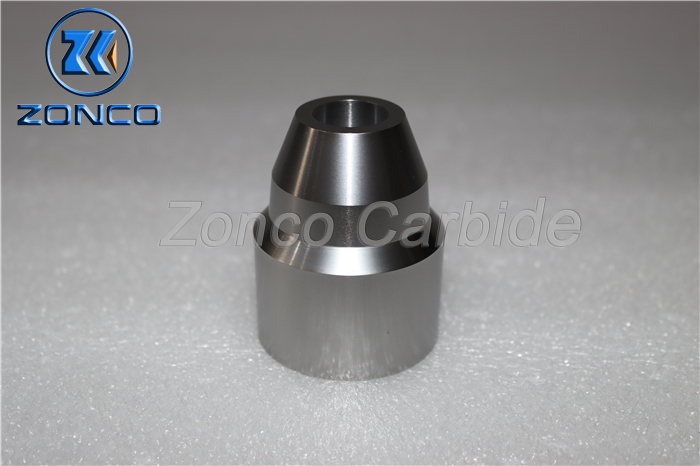

Other products show

Wear Resistance Tungsten Carbide ZK15 Valve Seat Corrosion Resistance

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade	WC%	Co/Ni %	Physical and mechanical properties			Grain size (μm)	Recommended application
Grade	WC%	Co/Ni %	Density (g/cm3)	TRS (N/mm²)	Hardness (HRA)	Grain size (μm)	Recommended application
ZG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06	94	6	14.8-15.1	2500	90.0	1.2	Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X	94	6	14.8-15.1	2400	91.5	1.0	Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
ZG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2	90	10	14.3-14.6	3800	91.7	0.7	Good general performance, suitable for casing and oil nozzle products
ZG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
ZG15X	85	15	13.8-14.2	4500	89.0	0.7	Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
ZN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
ZN11	89	11	14.0-14.3	2600	88.0	1.2
