High Pressure Resistance carbide shaft sleeve . Tungsten Carbide Bushing

Name: High Pressure Resistance carbide shaft sleeve Tungsten Carbide Bushing
Brand: ZONCO
Price: 1 USD

China High Pressure Resistance carbide shaft sleeve . Tungsten Carbide Bushing wholesale

Brand Name : ZONCO

Model Number : Customized

Certification : ISO9001:2015

Place of Origin : Zhuzhou

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T,

Supply Ability : 10000piece per month

Delivery Time : 30-35 working days

Packaging Details : carton or wooden case. Also can be customized as per your requirement.

Appearance : Polishing, sintering

Bush types : Sleeve Bushing

Material : Tungsten carbide, 100% raw material

Keywords : tungsten carbide bushing

Application : pump design in the oil and gas industry

Packing : Wooden box

Contact Now

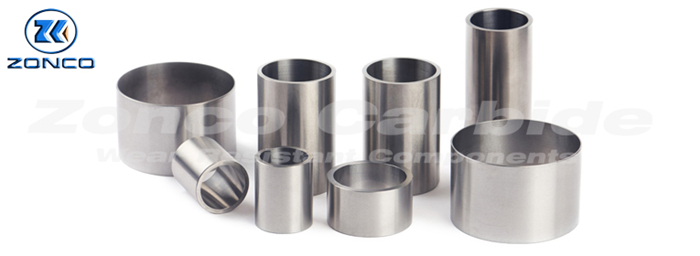

High Pressure Resistance Shaft Sleeve Tungsten Carbide Bushing For Petroleum Industrial

When operating in sand-bearing oil wells and high-sulfur high-pressure wells, carbide bushings as sliding bearings and carbide rings for mechanical seals are widely used in pump design in the oil and gas industry.

The product has high strength, wear resistance and high temperature and corrosion resistance.

High Pressure Resistance carbide shaft sleeve . Tungsten Carbide Bushing

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade	WC%	Co/Ni %	Physical and mechanical properties			Grain size (μm)	Recommended application
Grade	WC%	Co/Ni %	Density (g/cm3)	TRS (N/mm²)	Hardness (HRA)	Grain size (μm)	Recommended application
ZG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06	94	6	14.8-15.1	2500	90.0	1.2	Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X	94	6	14.8-15.1	2400	91.5	1.0	Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
ZG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2	90	10	14.3-14.6	3800	91.7	0.7	Good general performance, suitable for casing and oil nozzle products
ZG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
ZG15X	85	15	13.8-14.2	4500	89.0	0.7	Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
ZN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
ZN11	89	11	14.0-14.3	2600	88.0	1.2

Product Tags:

tungsten carbide bushing

shaft wear sleeve

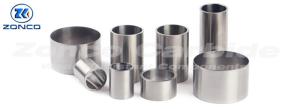

High Pressure Resistance carbide shaft sleeve . Tungsten Carbide Bushing Images
