High pressure resistance shaft sleeve Tungsten carbide bushing for petroleum chemical industrial
Products Description:
Tungsten carbide bushing production and processing of high-strength, can withstand prolonged load, with high chemical stability,
alkali, alcohol, ether, hydrocarbons, acid, oil, detergent, water (sea water), and has no smell , non-toxic, tasteless, non-rust
characteristics, its widely used in petrochemical industry for Submerged Oil Pump, slurry pump, water pump, Centrifugal Pump,etc.
Applications:
Tungsten carbide bushing applications is widely, which is a device to protect a class of components. It is in the actual work and the role and purpose of its application environment have a great relationship. Valve applications, bushings be installed in the valve stem cap trap, in order to reduce the valve leakage, to seal; bearing applications, the use of bush to reduce wear between the bearing and the shaft seat, avoid the gap between the shaft and the hole increases and so on.
Material characteristics:
The non-bonding phase nano cemented carbide material is developed for working conditions that require high wear resistance and corrosion resistance. By using the production technology of nano cemented carbide, the bending strength of the material can be improved. Therefore, products made from it can improve its resistance to damage.
Common alloy grades, physical and mechanical properties, and recommended applications
| Grade | Physical and mechanical properties |
| density(g/cm3) | Flexural strength(N/mm2) | hardness(HRA) |
| ZG01 | 15.3-15.5 | 1200 | 95.5 |
| ZG06 | 14.8-15.1 | 2000 | 90.0 |
| ZG6X | 14.8-15.1 | 1860 | 91.8 |
| ZG6A | 14.8-15.1 | 2000 | 93.2 |
| ZG08 | 14.6-14.9 | 2200 | 89.0 |
| ZG11 | 14.3-14.7 | 2600 | 88.5 |
| ZG12X | 14.2-14.5 | 2850 | 89.5 |
| ZG15 | 13.8-14.2 | 3000 | 86.5 |
| ZG10.2 | 14.3-14.6 | 3500 | 91.5 |
| ZN06 | 14.5-14.9 | 2000 | 90.0 |
| ZN09 | 14.3-14.6 | 2300 | 89.0 |
| ZN11 | 14.0-14.3 | 2600 | 88.0 |

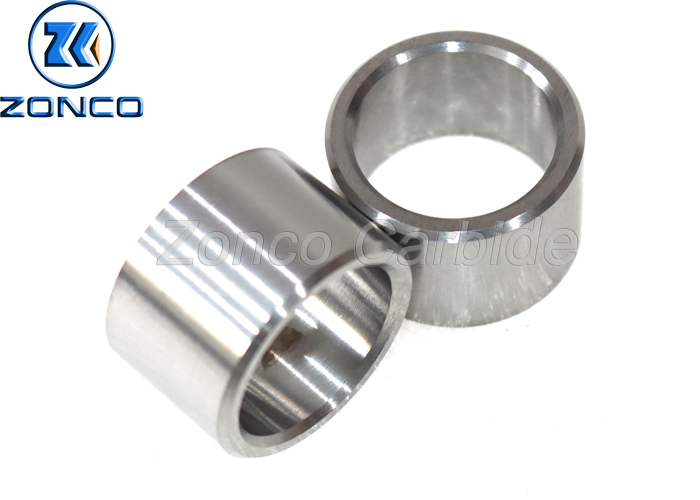

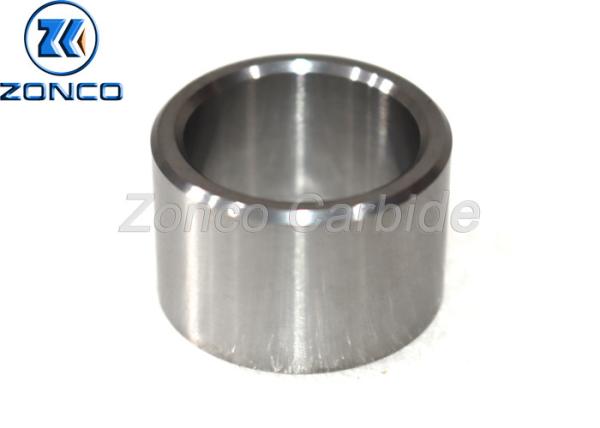

pictures:
Advantages:
① Advanced process design
② Specialized in production
③ Unique material properties
④ Personalized customization
⑤ Whole process quality control system
⑥ Strong supply ability guaranteed
